V-Slot® 20x40 Linear Rail

(5 reviews) Write a Review

SKU:: 285-LP
UPC:: 819368020410

$1,231.09

Current Stock:

Quantity:

Description

Description

V-Slot® Linear Rail is a high quality aluminum linear rail profile with an extremely smooth v groove on all 4 sides.

It's precise, easy to work with and allows you unlimited design control through it's modular nature.

"OpenBuilds® V-Slot® lets you ride in the rails!"

Product Details

Qty. 1
6063 T-5
20mm x 20mm
Various Lengths
Anodized Aluminum
Color: Sleek Silver/Industrial Black

What is OpenBuilds V-Slot®?

Building with V-Slot Linear Rail is much like working with lumber. You can cut it with a chop saw and the rest is as simple as turning a screwdriver to make the connections.

V-Slot's building characteristics are much like traditional T-Slot but V-Slot goes on to add new levels of functionality through it's internal v grooves that allow for linear motion. This brings your projects to life!

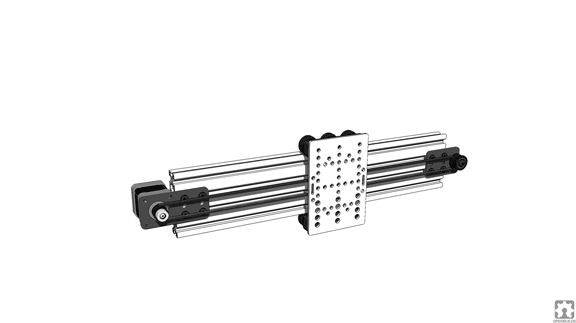

What Can Be Made Using OpenBuilds V-Slot®?

You will find that V-Slot® Linear Rail is the perfect solution for most projects. Below is a list of a few ideas to get you started.

3D Printers
CNC Engravers
Hot Wire Machines
Laser Cutters
Camera Sliders
Plasma Cutters
Robotics
Furniture
& Much, Much More!

OpenBuilds Part CAD Models and Drawings

View AllClose

5 Reviews

5 Reviews

5
Got it, and it's good

Posted by cory bluemling on Aug 27th 2018

Delivered pretty quick, it was exactly what I ordered. Thank you.
5
Great Quality

Posted by Unknown on Aug 10th 2018

Perfect straight, flawless and smooth finish. Exactly as described.
5
Linear rails

Posted by Tim Curtis on Jul 18th 2018

Excellent as always!
5
V-Slot 20x40 Linear Rail 1500mm long

Posted by Bruce Levison on Jul 3rd 2018

Received material in about 1 week time from order. Rail came well packaged; stretch wrapped then bubble wraped in a sturdy carboard 4 x 4 x 60 box. As received the V-slot rail was free of any damage or blemnishes. Excellent price for this piece of straight length aluminum extrusion. I purchased 1.5 meters of both the silver and black anodized rails, both are drop in replacements for the Z-axzis v-rail on my Ender 2 3D printer. I was able to extend the z-Axis on my 3D printer to 500mm then to almost 1 meter length using this rail. Rail ends are nicely square cut and the 2 central holes are perfect size for 5mm thread tap. Easily cut to length with a hacksaw in a miter box. Black anodized rail is very slightly larger dimmensions than silver rail; this was easily accomodated for by adjusting the offset nut on the guide wheel of the 3D printer. Based on my experience with other vendors, I will definitely pruchase more parts like these from OpenBuilds Part Store and highly recommend them.
5
20x40 linear rail

Posted by Roger on May 22nd 2018

Works great for the project I am working on.
