Description

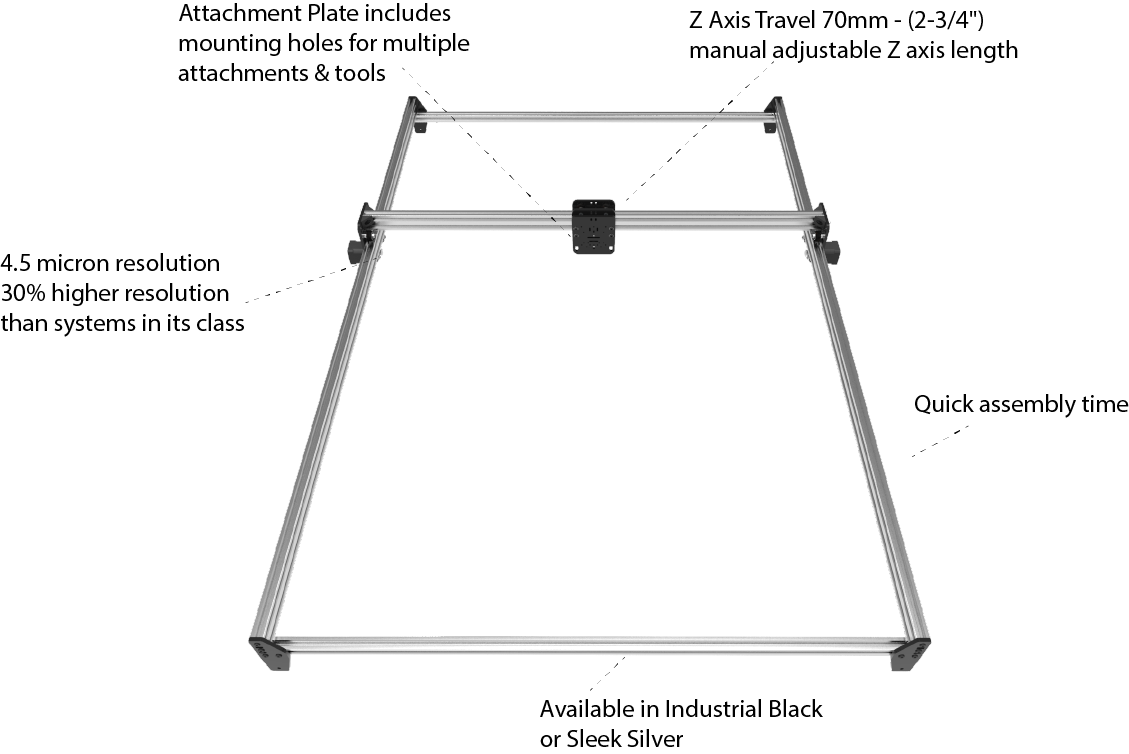

OPENBUILDS ACRO SYSTEM
The OpenBuilds ACRO System was developed to be the most accurate and cost effective positioning system in its class.
V-Slot system was incorporated and, therefore, the ACRO System has the unique ability to expand to multiple sizes creating a size configuration custom to your needs.
Specifications:
|
Travel (Work Area) |
X Axis 50" (1300mm) / Y Axis 30" (800mm) / Z Axis 2 3/4" (~70mm) |
|
Workable Material Height |
Variable based on toolhead used |
|
Drive System: |
Belt Driven GT2 timing belts |
|
Machine Accuracy |
0.003"~0.007" (0.10mm~0.20mm) |
|
Footprint |
60" x 40" (1500mm x 1000mm) |
Choose the size that best fits your needs.
|
|
|
|
|
|
|
Bundle Contents
Includes all the necessary Parts to assemble your machine.
V-Slot Linear Rail
ACRO Plates
GT2 14 Tooth Pulley
GT2 Belts
Solid V Wheel
Assembly Hardware
Add-ons
Complete your Machine with these popular add-ons.
Wiring Kit
24V Power Supply
NEMA 17 Stepper Motor
CNC xPro V4
Software
INCLUDED at no additional cost - OpenBuilds CAM and CONTROL software is everything you need to get started making.
OpenBuilds CAM - FREE
OpenBuilds CONTROL - FREE
Assembly/Support/Documentation
Easy follow along assembly video – top notch awesome community support – open source files and documentation and examples.
3D Model Resources
Free 3D models of the OpenBuilds Component Library.
Free 3D models of the OpenBuilds Component Library.
1 Review
-
ACRO 1510
As always, great delivery time on the kit. And what a treat to put this together!! It's awesome to have a system of parts that just plain work together. I'm using this for a J Tech laser system and look forward to using this amazing collaboration of components!
